Modified Starch Processing Machine
For Making Modified Starch Machine
Main raw material: Corn starch, Cassava starch
Capacity:150kg/hour,260kg/hour, 500kg/hour and 1200kg/hour
Machine material: SUS304,
Electric parts brand: SIEMENS
Modified Starch processing machine
Modified Starch Machine Description:
With high automation technology, modified starch machine can produce modified starch for adding the stickiness. It can be widely used in textile, food plant, oil drilling, paper and so on. The modified starch machine is welcomed for its wide application. Through extruding, cooling, crushing, drying and milling, the modified starch is produced well.
Modified Starch Machine Photo:
The process of Modified starch production:
1. Mix the Starch with water (or some Chemical liquid)
2. Extrude the starch with high temperature and pressure (130-160℃, 6-10Mpa)
During Extruding process we can also inject with Chemical Liquid
3. Dry the Modified Pellet
4. Cooling the pellet
5. Mill the pellet into powder
6. Pack the modified Starch.
Details of the each equipment:
1.Ribbon Mixer
It Can make the starch and other things
2.Twin screw Extruder
This is the most important machine.It will process the starch by high temperature and pressure.
Finally make the starch into modified starch Pellets
Automatic temperature control system
Automatic raw material feeding system
Extrusion system is made by twin screw with the main motor and gear box.The screw is alloy steel. The speed of the Motor is controlled by Inverter.
Screw material is 38CrMoAl alloy steel.
3.Gas Dryer
The dryer will dry the pellets， reduce the moisture to 11%
The dryer we can use Electricity heating, Gas heating, Diesel heating and Steam heating.

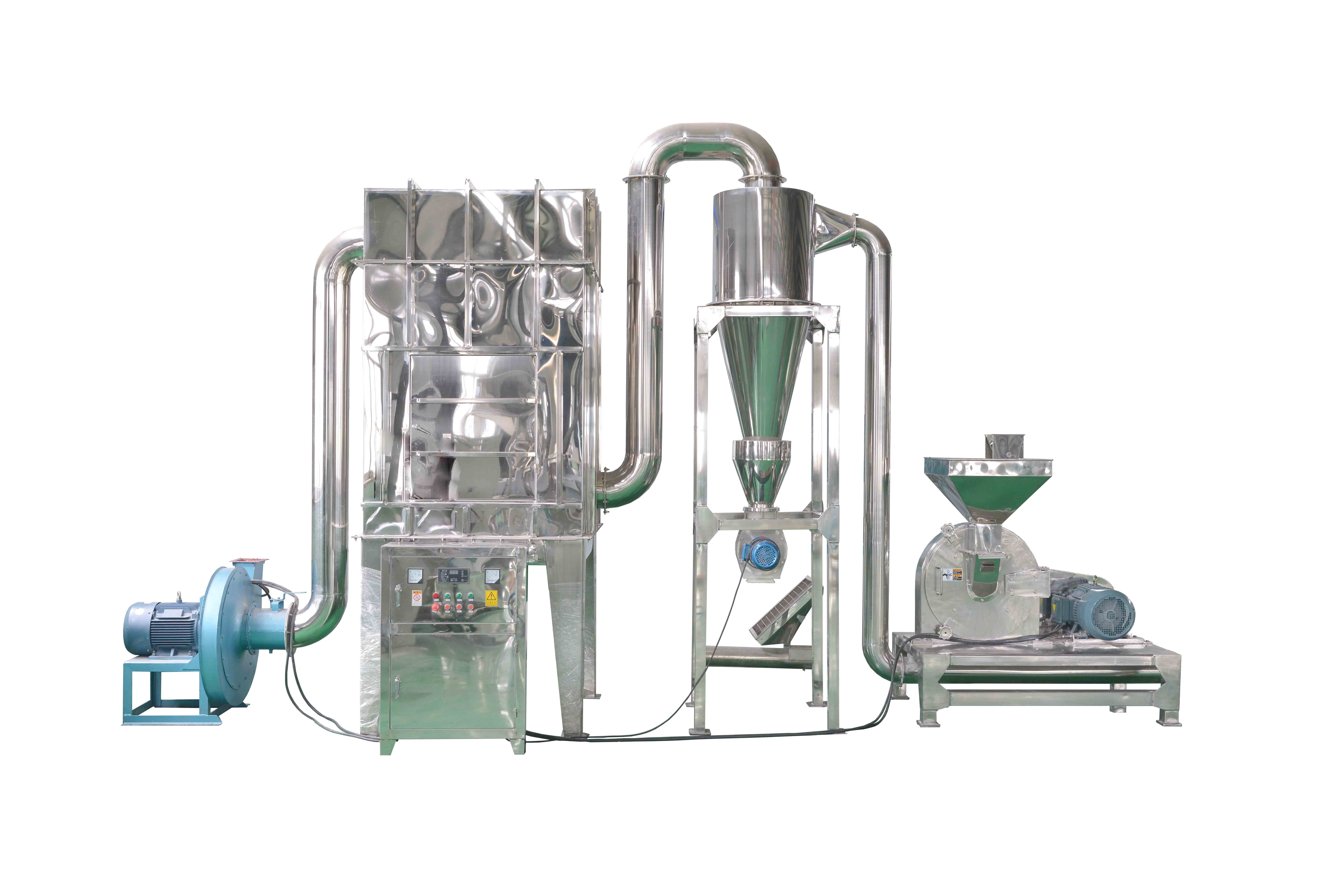

4. Milling Machine
This machine will mill the modified starch pellets into powder to get the Modified starch
It has Cooling system Dust remove system Milling system.
Parameters of the processing line:
Model | Install Power | Real Power | Capacity | Dimension |
SLG65 | 79KW | 55KW | 150KG/H | 20x 2.0 x 3.0 |
SLG70 | 110KW | 72KW | 250KG/H | 23x 2.0 x 3.0 |
SLG85 | 190KW | 130KW | 500KG/H | 30x 2.0 x 3.5 |
SLG100 | 270KW | 190KW | 1200KG/H | 40x 2.0 x 5.5 |
Product features:
*The modified starch machine is widely used in many fields.
*The machine line is made of stainless steel with high quality.
*The machine has the feature of self cleaning without disassembling.
*The machine can save space and energy cost without leaking material.
Application:
The modified starch machine is widely used in textile, food process, oil drilling, paper, construction industries, etc.
